| Cordless Communications |
Gryphon GBT4200 |
Bluetooth 5.0, HID/SPP profiles, 100m range, secure data encryption |
| |

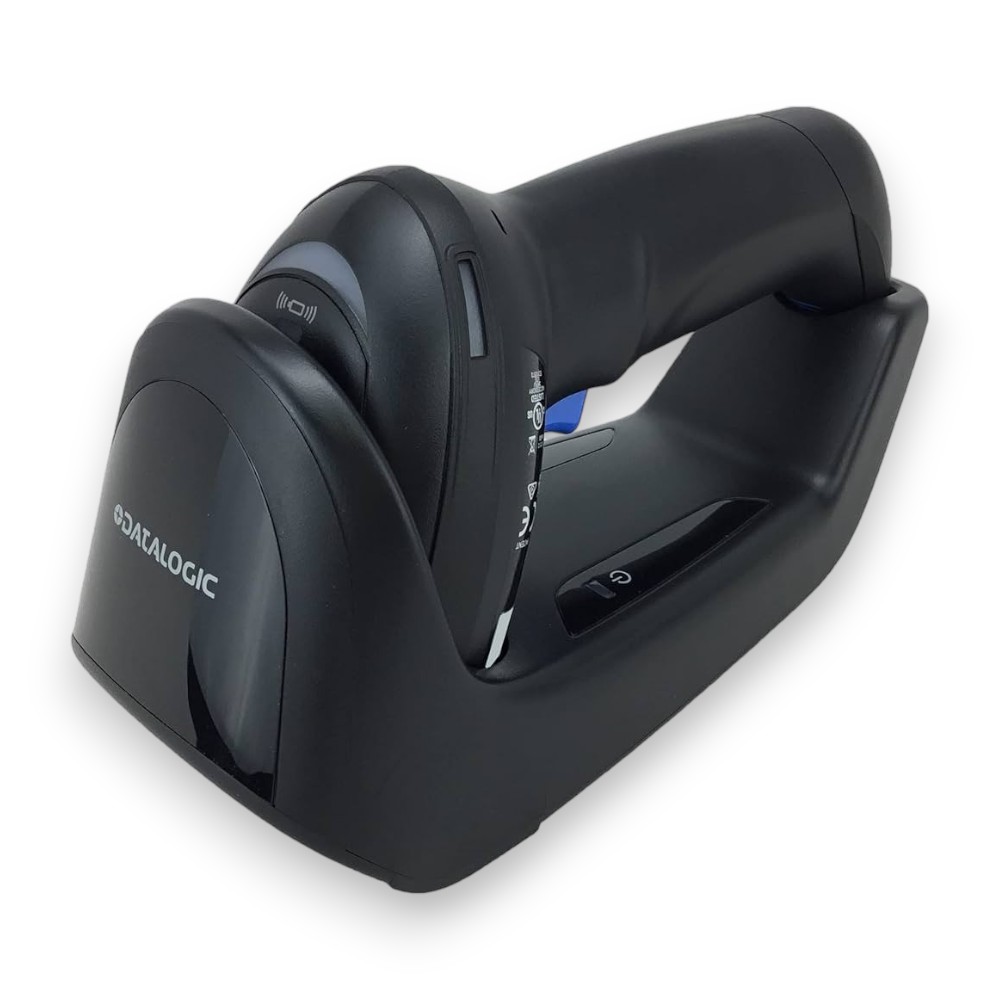

Gryphon GM4200 |
STAR Cordless System, 433.92/910 MHz, two-way communication, 50m range |
| Decoding Capability |
1D/Linear Codes |
Supports standard 1D codes, GS1 DataBar™ |
| Cordless Models Electrical |
Battery Type |
Lithium-Ion, 2550 mAh |
| |
Charge Time |
4 hours @ 12 VDC |
| |
Reads per Charge |
80,000 |
| |
Current (Charging) |
Max 1200 mA (WLC4190) |
| |
Input Voltage (Cradle) |
4.5 - 14 VDC +/- 5% |
| Corded Models Electrical |
Current (Operating/Standby) |
Typical: |
| |
Input Voltage |
GD4220: 5 VDC; GD4290: 4.5 - 14 VDC |
| Environmental |
Ambient Light |
0 - 130,000 lux |
| |
Drop Resistance |
1.8m / 6.0ft onto concrete |
| |
ESD Protection (Air Discharge) |
16 kV |
| |
Humidity (Non-Condensing) |
0 - 95% |
| |
Particulate & Water Sealing |
IP52 |
| |
Temperature |
Operating: 0 to 50°C; Storage: -20 to 70°C |
| Interfaces |
Cordless Models (WLC4190) |
USB Type C / USB / RS-232 |
| |
Cordless Models (WLC4090) |
USB / RS-232 |
| |
Corded Models (GD4220) |
USB Type C / USB only |
| |
Corded Models (GD4290) |
USB Type C / USB / RS-232 |
| Physical Characteristics |
Colors Available |
Black, White |
| |
Dimensions (Corded/Cordless) |
16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in |
| |
Weight (Corded/Cordless) |
163g / 235g (battery included) |
| Reading Performance |
Imager Sensor |
CCD Solid-State |
| |
Light Source |
Dual LED Array 612-630 nm |
| |
Read Rate (Max) |
1,000,000 pixels/sec (400 reads/sec) |
| |
Print Contrast Ratio (Min) |
15% |
| |
Reading Angle |
Pitch: ±65°, Roll: ±45°, Skew: ±65° |
| |
Reading Indicators |
Beeper, Datalogic 3GL, Green Spot |
| |
Resolution (Max) |
0.077 mm / 3 mils |
| Reading Ranges |
Code 39: 5 mils |
5.0 to 37 cm / 2.0 to 14.6 in |
| |
Code 39: 7.5 mils |
5.0 to 54 cm / 2.0 to 21.3 in |
| |
Code 39: 10 mils |
5.0 to 73.5 cm / 2.0 to 28.9 in |
| |
Code 39: 20 mils |
2.5 to 147 cm / 1 to 57.9 in |
| |
EAN/UPC: 13 mils |
3.5 to 90 cm / 1.4 to 35.4 in |
| Safety & Regulatory |
Agency Approvals |
Meets safety and regulatory approvals |
| |
Environmental Compliance |
Complies with China RoHS, EU RoHS |
| |
LED Classification |
Exempt group per IEC 62471 |
