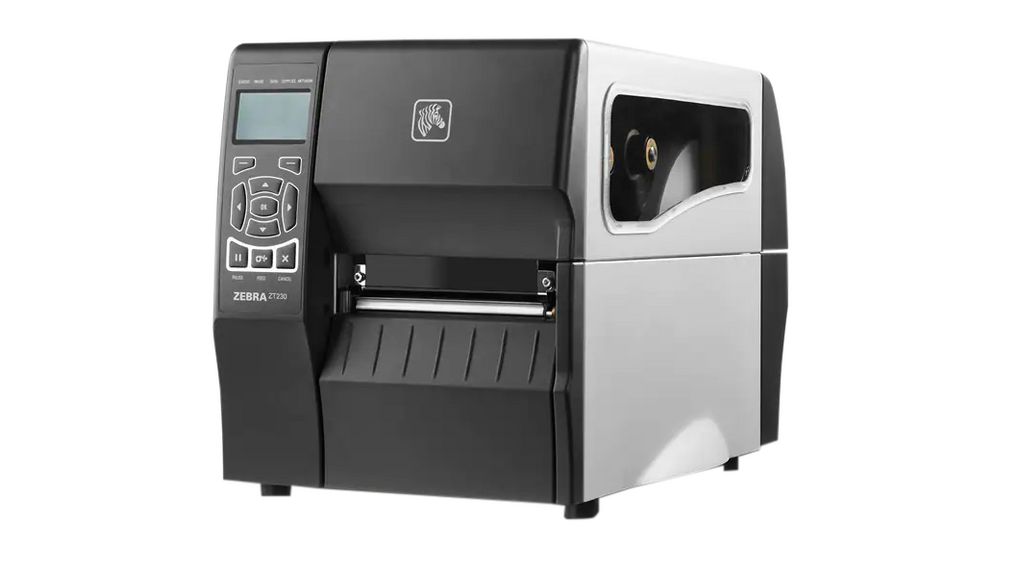

Zebra ZT230 203 DPI Industrial Direct Thermal Label Printer

Zebra ZT230 Direct Thermal Label Printer - USB, Ethernet, RS232
Zebra's most affordable industrial printer, the ZT200 Series builds on customer feedback for innovative printers with a space-saving design.

Download Specifications Sheet

Manufacturer: Zebra
Availability: 1 in stock
Reference Code: ZT23042-D0E200FZ
€895.00 incl VAT
decrease increase
Share

Standard Features:

  • Print methods: Direct-Thermal
  • Construction: metal frame with a metal media cover
  • Bi-fold media door with large clear window
  • Side-loading supplies path for simplified media and ribbon loading
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Bi-color LEDs for quick printer status
  • Icon-based LCD multilingual graphical user interface and full function keypad
  • Communications: USB 2.0 and RS-232 Serial ports
  • ENERGY STAR qualified



Printer Specifications:

  • Resolution: 203 dpi/8 dots per mm
  • Memory: 128 MB SDRAM memory / 128 MB on-board linear Flash memory
  • Maximum Print Width: 4.09″/104 mm
  • Maximum Print Speed: 6″/152 mm per second
  • Media Sensors: Transmissive and reflective sensors
  • Print Length: 203 dpi: 157″/3988 mm



Media Characteristics:

  • Maximum Media Width: 0.75″/19.4 mm to 4.50″/114 mm
  • Maximum Media Roll Size: 8.0″/203 mm O.D. on a 3.0″/76 mm I.D. core & 6.0″/152 mm O.D. on a 1.0″/25 mm I.D. core
  • Thickness: 0.003″/0.076 mm to 0.010″/0.25 mm
  • Media Types: Continuous, die-cut, notch, black mark



Operating Characteristics:

  • Operating Temperature: 32ºF to 105ºF/0ºC to 40ºC
  • Operating Humidity: 20% to 85% non-condensing
  • Storage/Transportation Temperature: -40ºF to 140ºF/-40ºC to 60ºC
  • Storage Humidity: 5% to 85% non-condensing
  • Electrical: Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 47-63 Hz
  • ENERGY STAR qualified



Physical Characteristics:

  • Length Closed: 17″/432 mm
  • Width Closed: Closed: 9.5″/242 mm
  • Height Closed: 10.9″/277 mm
  • Weight Closed: 20 lbs./9.1 kg

Standard Features:

  • Print methods: Direct-Thermal
  • Construction: metal frame with a metal media cover
  • Bi-fold media door with large clear window
  • Side-loading supplies path for simplified media and ribbon loading
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Bi-color LEDs for quick printer status
  • Icon-based LCD multilingual graphical user interface and full function keypad
  • Communications: USB 2.0 and RS-232 Serial ports
  • ENERGY STAR qualified



Printer Specifications:

  • Resolution: 203 dpi/8 dots per mm
  • Memory: 128 MB SDRAM memory / 128 MB on-board linear Flash memory
  • Maximum Print Width: 4.09″/104 mm
  • Maximum Print Speed: 6″/152 mm per second
  • Media Sensors: Transmissive and reflective sensors
  • Print Length: 203 dpi: 157″/3988 mm



Media Characteristics:

  • Maximum Media Width: 0.75″/19.4 mm to 4.50″/114 mm
  • Maximum Media Roll Size: 8.0″/203 mm O.D. on a 3.0″/76 mm I.D. core & 6.0″/152 mm O.D. on a 1.0″/25 mm I.D. core
  • Thickness: 0.003″/0.076 mm to 0.010″/0.25 mm
  • Media Types: Continuous, die-cut, notch, black mark



Operating Characteristics:

  • Operating Temperature: 32ºF to 105ºF/0ºC to 40ºC
  • Operating Humidity: 20% to 85% non-condensing
  • Storage/Transportation Temperature: -40ºF to 140ºF/-40ºC to 60ºC
  • Storage Humidity: 5% to 85% non-condensing
  • Electrical: Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 47-63 Hz
  • ENERGY STAR qualified



Physical Characteristics:

  • Length Closed: 17″/432 mm
  • Width Closed: Closed: 9.5″/242 mm
  • Height Closed: 10.9″/277 mm
  • Weight Closed: 20 lbs./9.1 kg
*
*
*
*
