| Model / Part Number | SP2002-SR4UR700SGW |

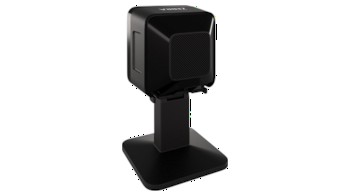

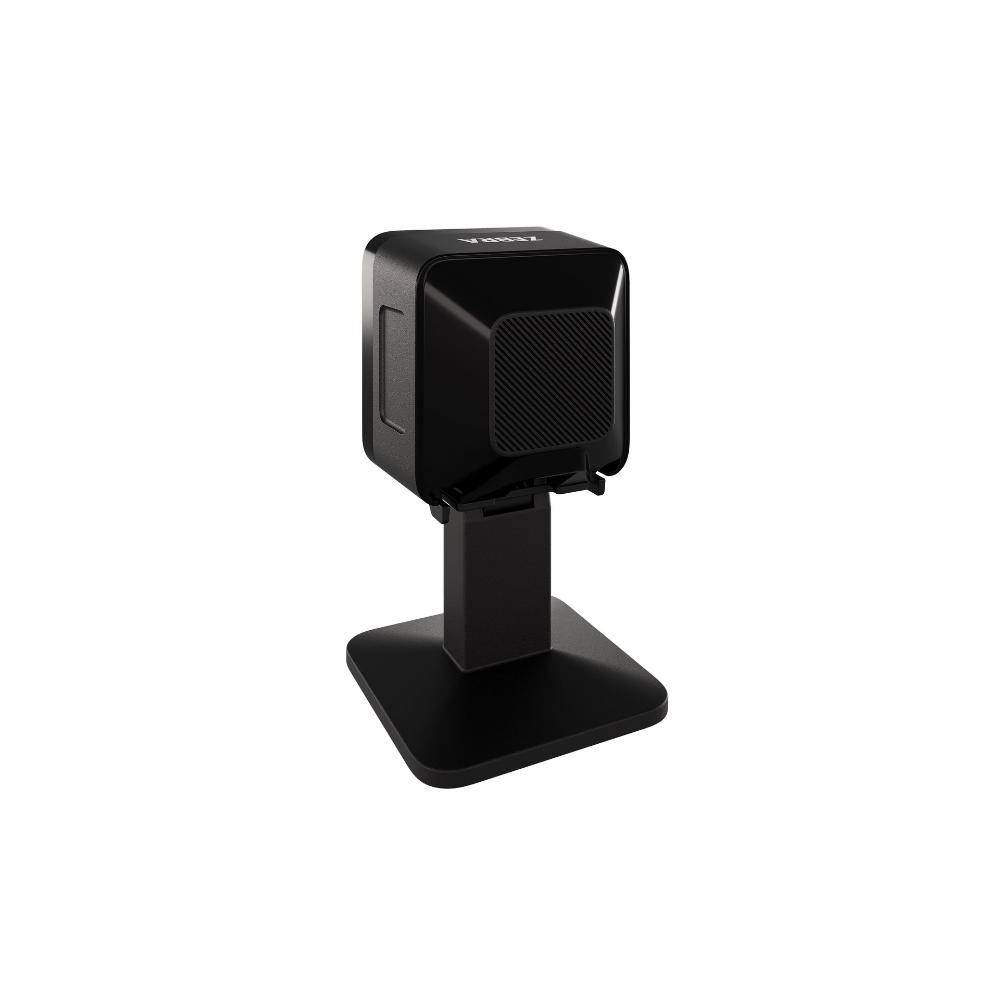

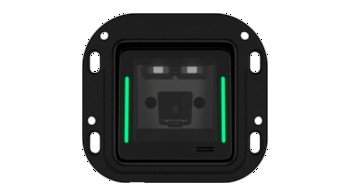

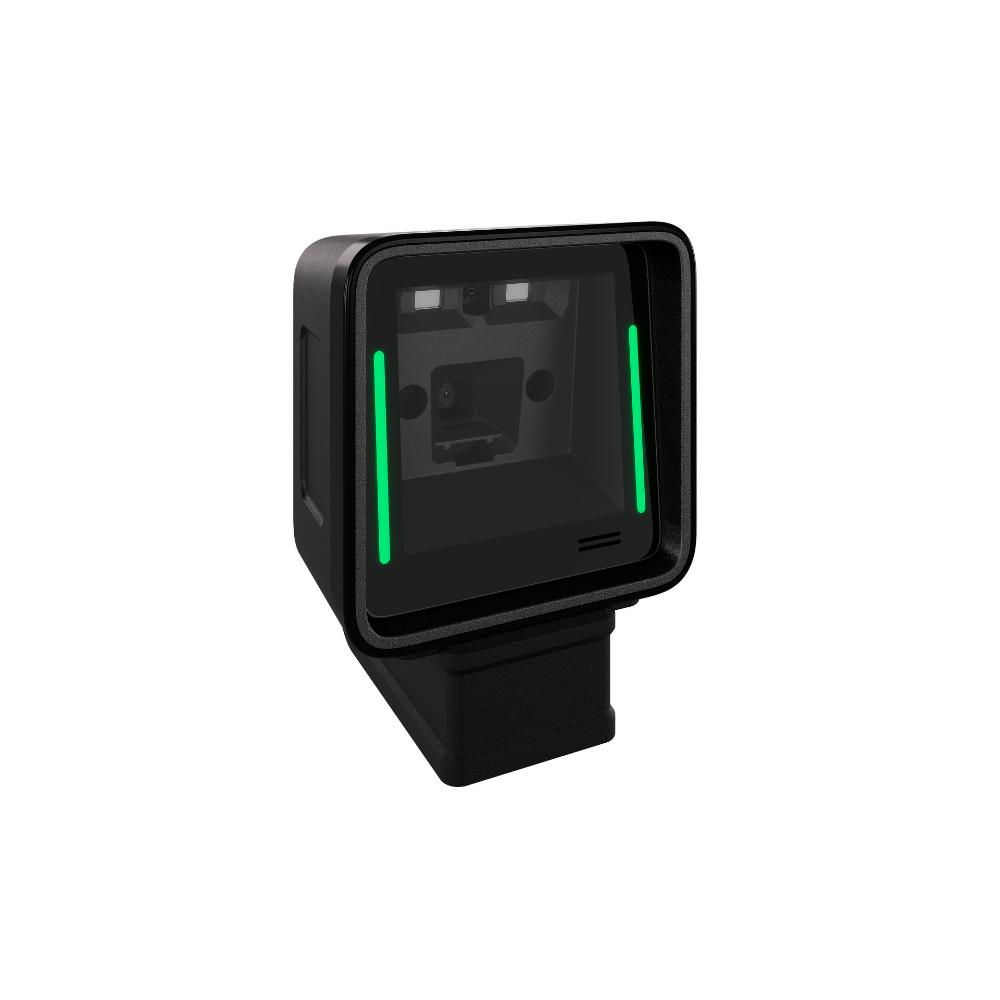

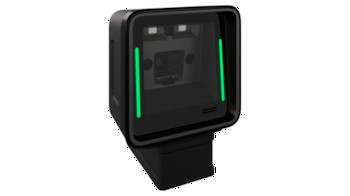

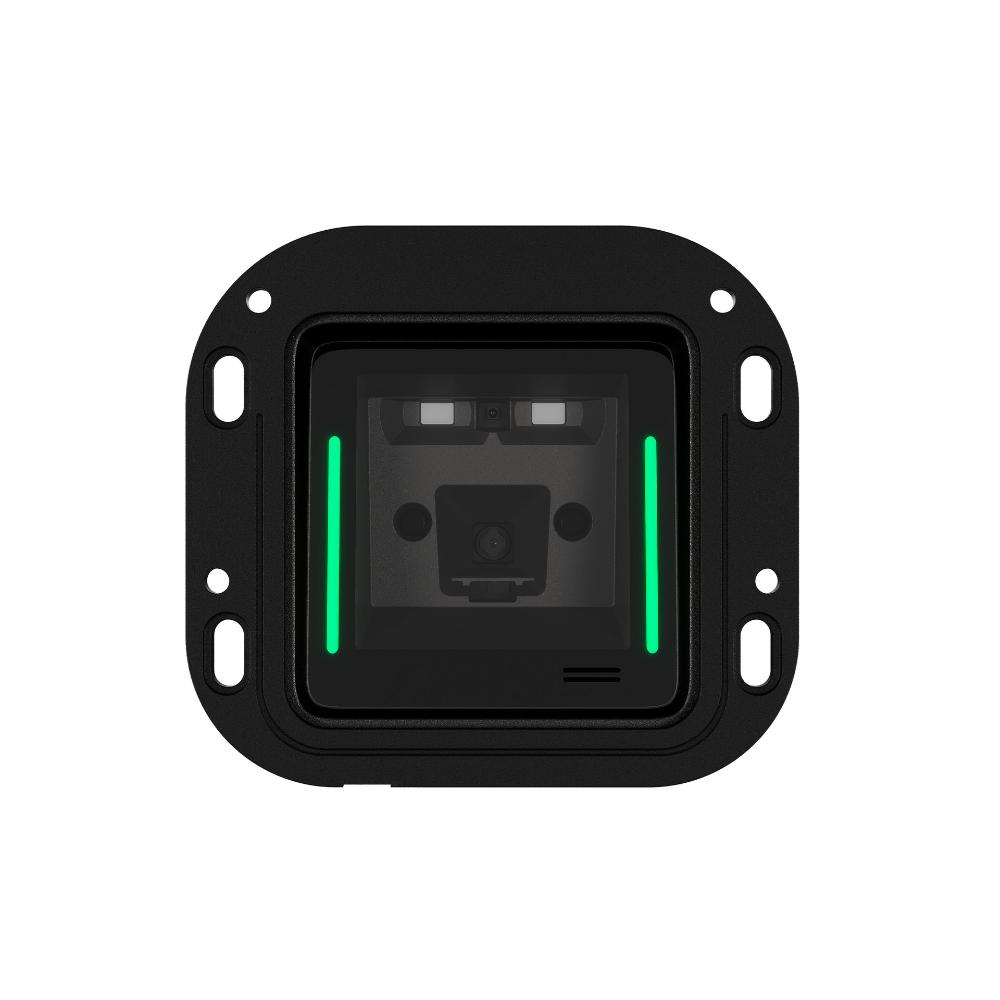

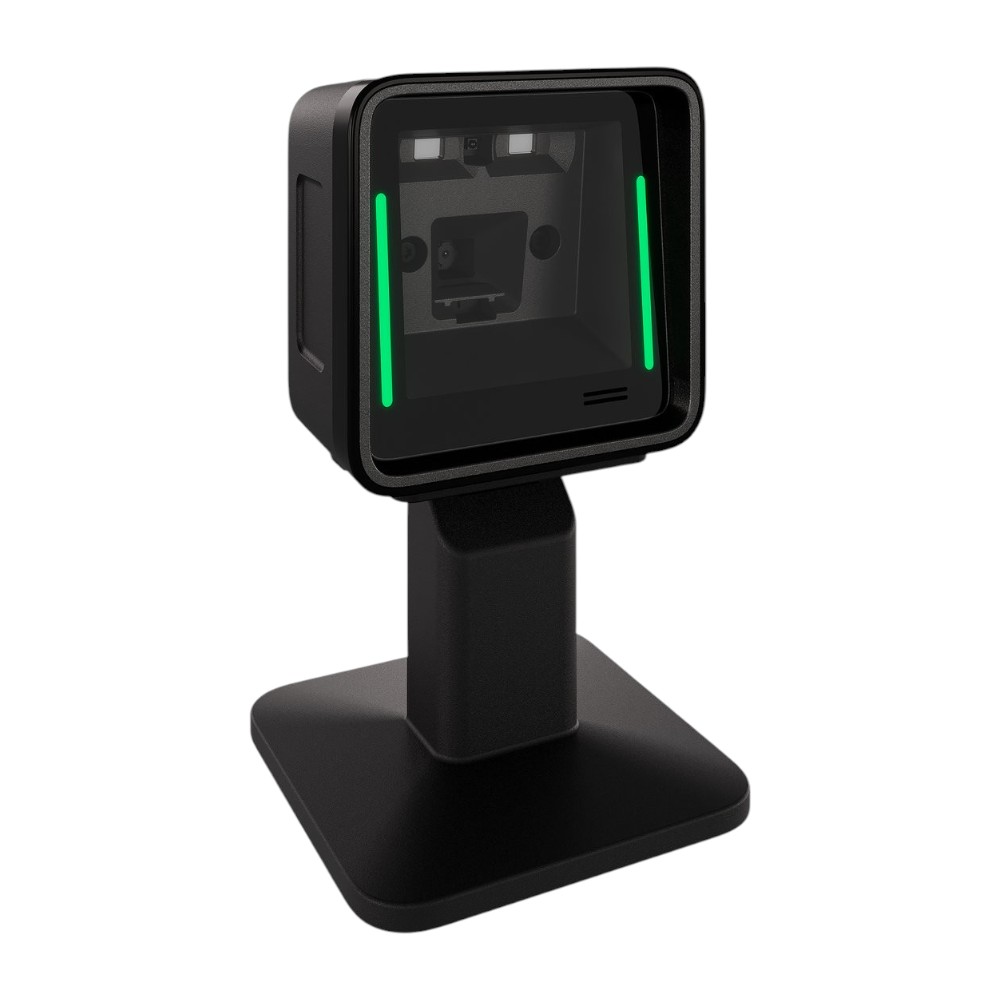

| Product Name | Zebra SP20 Series SP2002 2D Barcode Scanner |
| Product Type | Wired Single-Plane Presentation Barcode Scanner |
| Scanning Technology | 1 Megapixel Area Imager |
| Scanning Capability | 1D and 2D Barcodes, Including Printed and Mobile Screen Barcodes |
| Scan Range | Standard Range (SR) |
| Image Sensor Resolution | 1280 × 800 Pixels |
| Field of View | 62° Horizontal × 41° Vertical |
| Illumination | 2 × Deep Red LEDs |
| Supported 1D Barcodes | Code 39, Code 128, Code 93, Codabar, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, GS1 DataBar and Others |
| Supported 2D Barcodes | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, MaxiCode, Han Xin and Composite Codes |
| Additional Barcode Support | GS1 Digital Link and Digimarc Barcodes |
| Minimum Barcode Resolution | 3 mil (Code 39 / Code 128); 5 mil (Data Matrix / QR Code) |
| Minimum Print Contrast | 20% Minimum Reflective Difference |
| Skew Tolerance | ±70° |
| Pitch Tolerance | ±60° |
| Roll Tolerance | 360° |
| Host Interface | RS-232 Serial Configuration; SP20 Series Also Supports USB |
| Connection Type | Wired |
| Scanning Modes | Presentation Mode and Host Trigger Mode |
| User Indicators | Power, Active Scan Zone and Good Decode LEDs; Audible Beeper |
| Power Requirements | 4.75–5.25 V DC, Host Powered or External Power Supply |
| Typical Operating Current | 280 mA in Presentation Mode; 260 mA in Host Trigger Mode |
| Environmental Protection | IP52 |
| Drop Resistance | Multiple Drops from 1.5 m onto Concrete |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Ambient Light Immunity | Up to 108,000 Lux (Sunlight) |
| Dimensions (H × W × D) | 75 × 75 × 57 mm (Scanner Only) |
| Weight | 110 g (Scanner Only) |
| Colour | Midnight Black |
| Mounting Options | Compatible with Adjustable Stand, Flange Bracket, L-Bracket and Standard 1/4"-20 Camera Screw Mounting Accessories |
| Applications | Retail POS, Self-Checkout, Hospitality, Quick-Service Restaurants, Self-Service Kiosks, Ticketing, Visitor Check-In and Loyalty Scanning |
