| Model / Part Number | RFD4031-G10B700-E8 |

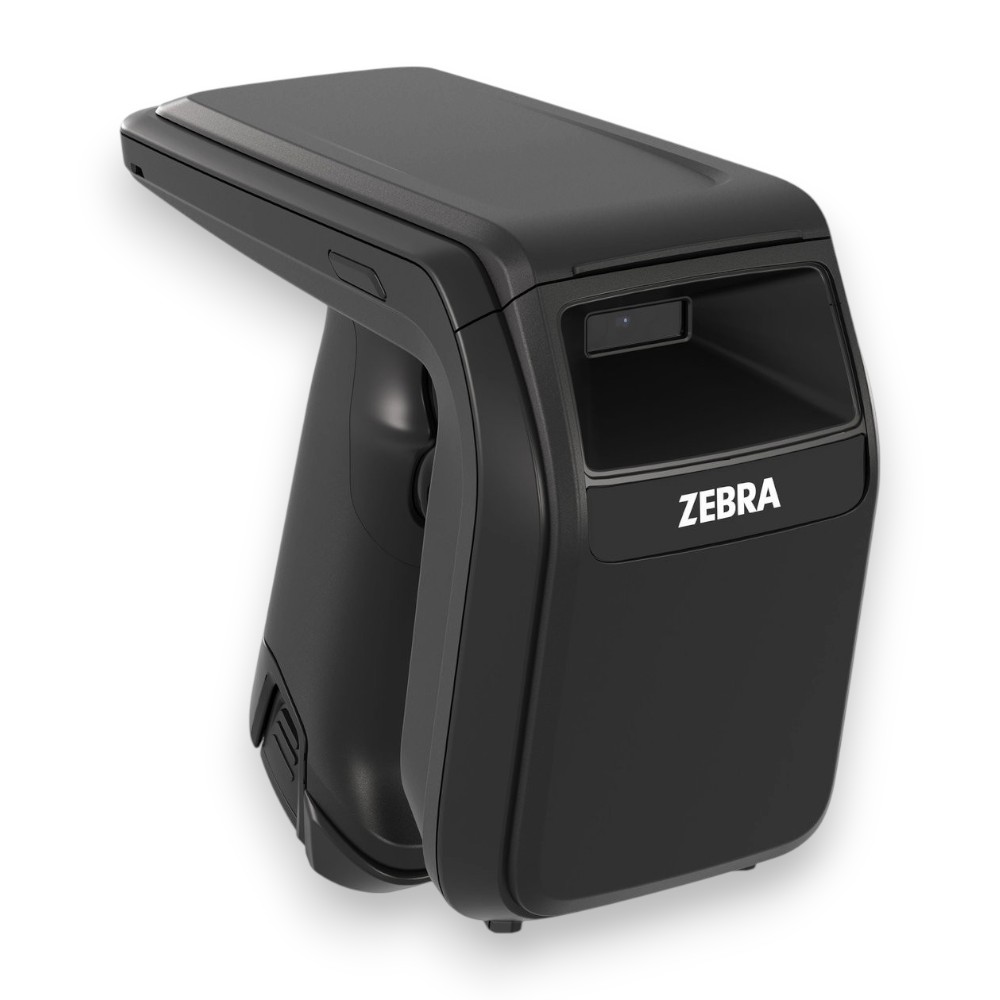

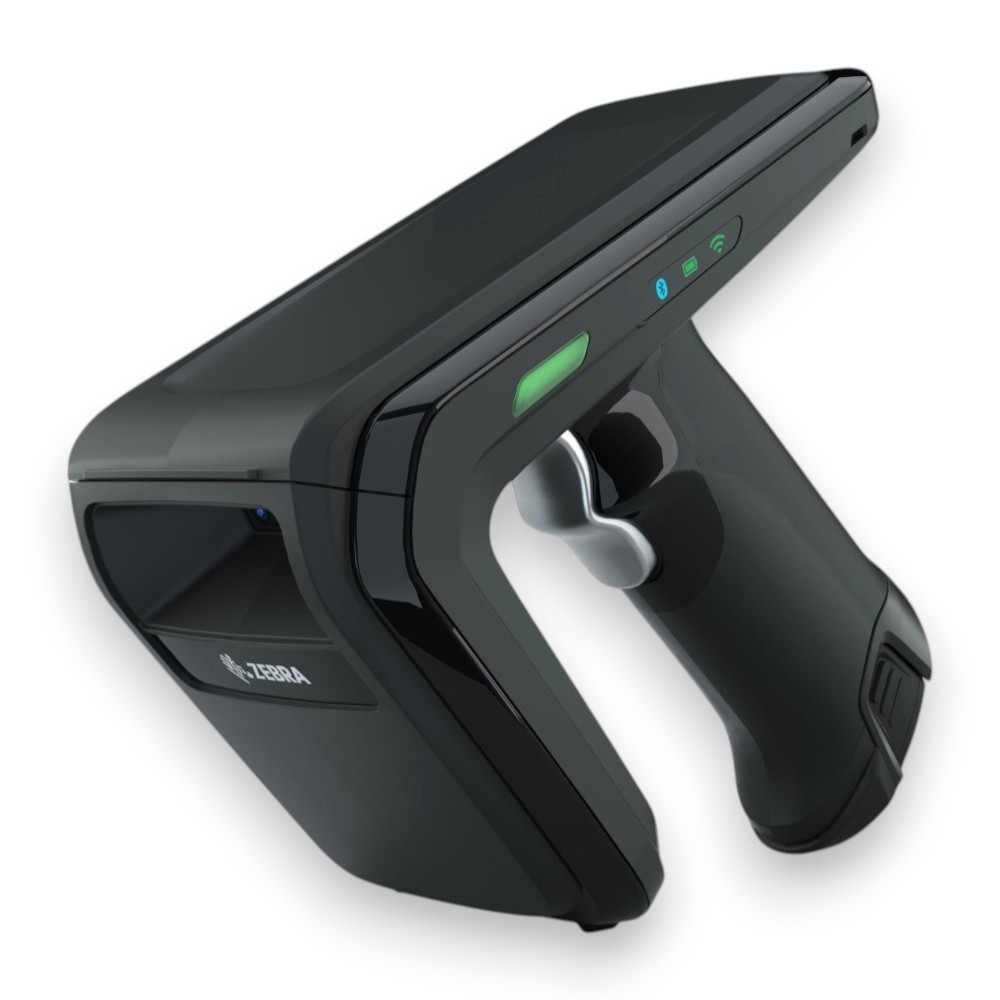

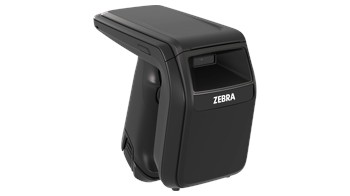

| Product Name | Zebra RFD40 Premium Plus UHF RFID Sled with SE4100 Imager |
| Manufacturer | Zebra Technologies |
| Product Type | Wireless Handheld UHF RFID Reader / Writer with Integrated 1D / 2D Barcode Scanner |
| RFID Technology | RAIN UHF RFID |
| RFID Standards | EPC Class 1 Gen 2; EPC Gen2 V2 |
| Operating Frequency | 865–868 MHz (European / EMEA Configuration) |
| RF Output Power | 0–30 dBm EIRP |
| RFID Engine | Zebra Proprietary RFID Radio Technology |
| RFID Antenna | Integrated Standard-Range UHF RFID Antenna |
| Maximum Tag Read Rate | Over 1,300 Tags per Second |
| Nominal RFID Read Range | Over 6 m, Depending on RFID Tags, Orientation and Environment |
| RFID Functions | RFID Tag Reading, Writing, Inventory Counting and Item Location |
| Barcode Scanner | Integrated Zebra SE4100 1D / 2D Area Imager |
| Barcode Scanning Capability | Reads Supported 1D and 2D Barcodes, Including Printed and Mobile Screen Barcodes |
| Imager Resolution | 1280 × 960 Pixels |
| Scanner Field of View | 44.5° Horizontal × 33.5° Vertical |
| Scanner Aiming | Green LED |
| Scanner Illumination | Warm White LED |
| Scanner Orientation Tolerance | ±60° Skew, ±60° Pitch and 360° Roll |
| Bluetooth | Bluetooth 5.3 |
| Bluetooth Profiles | SPP, HID and Apple iAP2 / MFi |
| Wi-Fi | Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax), Primarily for Device Management |
| NFC | NFC Tap-to-Pair |
| Host Connection | Bluetooth 5.3, Zebra eConnex 8-Pin Interface and Compatible USB-C Connection Accessories |
| Compatible Host Devices | Supported Zebra Mobile Computers and Tablets, Third-Party Android / iOS Devices and Windows PCs |
| Smartphone Connection | Wireless Bluetooth Connection to Compatible Android and Apple Devices; Suitable RFID Software Required |
| Device Management | Wi-Fi 6, Compatible Ethernet Cradles or Attached Host Device |
| Trigger | Integrated Tri-Function Programmable Trigger for RFID, Barcode Scanning and Additional Functions |
| User Indicators | Decode LEDs, Battery Status LED and Audible Beeper |
| Battery | Zebra PowerPrecision+ 7,000 mAh Rechargeable Lithium-Ion Battery |
| Battery Replacement | Quick-Release Removable Battery |
| Charging Options | Compatible USB-C Charging Accessories and Zebra RFD40 Charging Cradles |
| Environmental Protection | IP54 |
| Drop Resistance | Multiple Drops from 1.5 m onto Concrete |
| Tumble Resistance | 500 Tumble Cycles (1,000 Drops) from 0.5 m |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 5% to 85% RH, Non-Condensing |
| Dimensions (H × W × L) | 151 × 84 × 166.5 mm |
| Weight | Approximately 556 g with Battery |
| Included in Box | Zebra RFD40 Premium Plus RFID Sled, 7,000 mAh Rechargeable Battery, Lanyard and Quick Start Guide |
| Accessories Sold Separately | Compatible eConnex Host Adapters, Charging Cradles, USB Connection Accessories and Mobile Computers |
| Applications | Asset Tracking, Inventory Management, Warehouse Operations, Retail Stocktaking, Logistics, Equipment Tracking, RFID Tag Encoding and Barcode Scanning |
